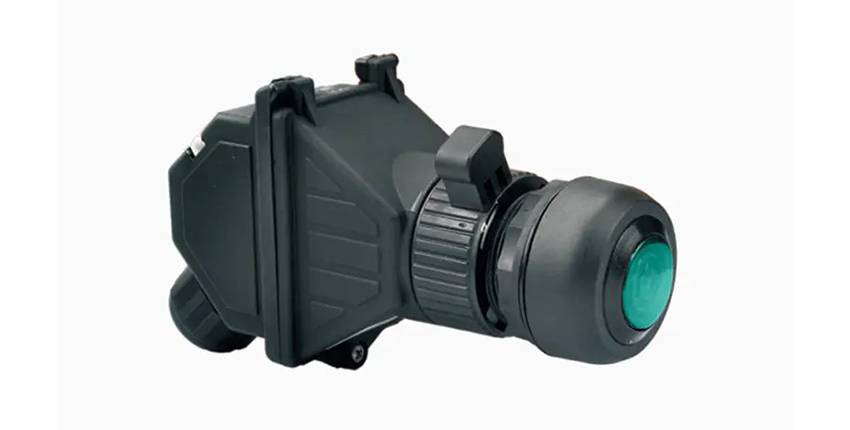

CZ0212 Explosion-proof signal lamp with push button for panel mounting
CZ0212 Explosion-proof signal lamp with push button for panel mounting
code : CZ0212
Prodcuts Features:
● The rated current of explosion-proof switches for panel mounting is up to 16A and the mechanical life is 1,000,000 times. There are silver or gold-platead silver contact points for options.● Explosion-proof signal lamps for panel mounting have high brightness, long life. The electric life is more than 100,000 hours.
● Degree of protection IP66.
● IECEx International Certification, ATEX European Approval.
Product Parameter
|
Product type： |
CZ0212 Explosion-proof signal lamp with push button for panel mounting |
|
Certification： |
CCC IECEX ATEX |
|
Application range (zones)： |
2G/Gb/zone 1；2D/Db/zone 21 |
|
Min.ambient temperature： |
-40℃ |
|
Max.ambient temperature： |
+50℃ |
|
Degree of protection： |
IP66( Match operation head ) |
|
Terminals： |
2×2.5mm² |
|
Button Rated voltage/Rated current： |
AC250V/10A DC24V/1A |
|
Rated voltage of signal lamp： |
12-28V AC/DC 20-250V AC/DC |
|
Light source： |
LED |
|
Power consumption： |
Pmax≤1W |
|
Cable entry outer diameter： |
Φ5.5 ～ 13mm |
